179974-1
Manufacturer:
TE Connectivity
Mfr.Part #:
179974-1
Datasheet:
Description:

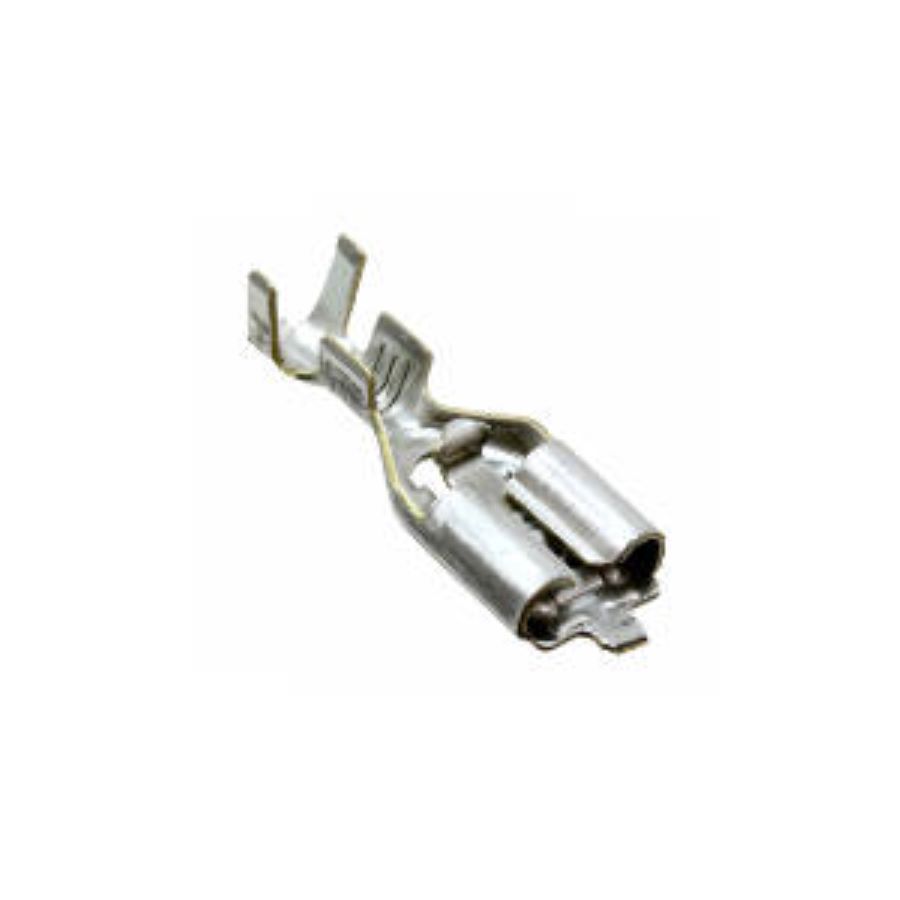

Terminals Free Hanging 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.2 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Material | Brass |
| Packaging | Reel |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Unplated |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 3.4036 mm |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 14 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.4036 mm |
| Contact Gender | Female |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | 6.2992 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 1051
Distributors
pcbx
pcbxUnit Price$0.22656
Ext.Price$0.22656
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22656 | $0.22656 |
| 10 | $0.11328 | $1.13280 |
| 50 | $0.08714 | $4.35700 |
| 100 | $0.06703 | $6.70300 |
| 500 | $0.06157 | $30.78500 |
| 1000 | $0.05655 | $56.55000 |
| 3000 | $0.05277 | $158.31000 |
| 5000 | $0.04924 | $246.20000 |
| 10000 | $0.04595 | $459.50000 |
| 30000 | $0.04288 | $1286.40000 |
| 50000 | $0.04000 | $2000.00000 |
